Product Code: 000-16488-001-DEMO

DEMO ActiveTarget 2 XL Sonar w/Transducer

Skip to the end of the images gallery
Skip to the beginning of the images gallery
Our price:
$1,799.99 $1,599.97

DEMO ActiveTarget 2 XL Sonar w/Transducer

$1,799.99 $1,599.97
Details Features Reviews

Condition: This item is an Open-Box product. It has been inspected to ensure it is in working condition. While the item itself is in new or like new condition, the original retail packaging may show cosmetic wear, or may be unsealed/re-boxed.

Warranty: This item may not carry the original manufacturer's warranty, but is backed by our standard 30-day return policy.

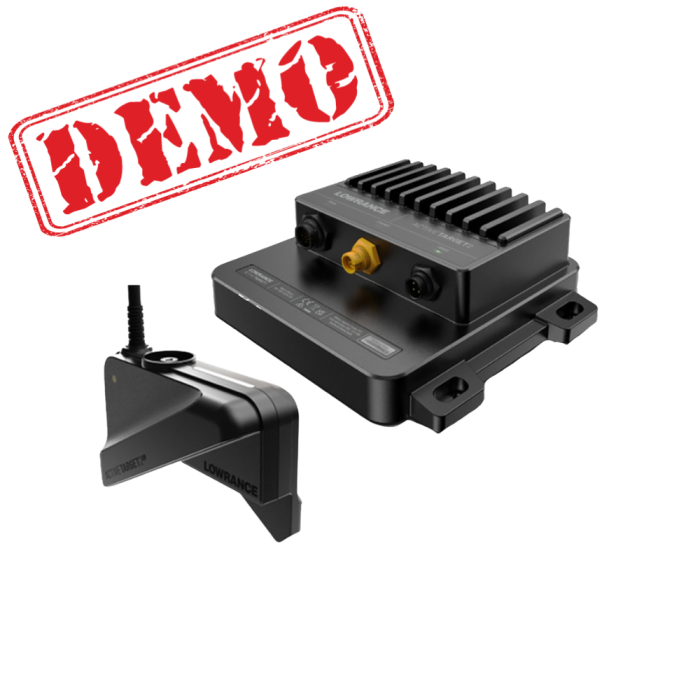

DEMO ActiveTarget 2 XL Transducer & Active Target 2 Module

See more, react faster, and fish with confidence using ActiveTarget® 2 XL Live Sonar. Featuring an extra-large transducer and surface-to-surface 180° live views, this system delivers the clearest, widest real-time sonar coverage available—so nothing goes unseen beneath or around your boat.

Key Features:

  • Best-in-Class Live Resolution – XL transducer delivers sharper, clearer real-time images of fish and bait movement.

  • Wide 180° Field of View – Surface-to-surface coverage across Forward, Down, and Scout views from a single transducer.

  • Quick-Switch Viewing – Instantly change between Forward XL and Down XL directly from your display—no manual adjustments.

  • Enhanced Scout Mode – Improved mounting and angle reference markers make dialing in Scout views fast and precise.

  • Single-Transducer Upgrade – All views available from one XL transducer; compatible with existing ActiveTarget® 2 sonar modules.

  • Expandable to 360° Coverage – Add a second XL system to unlock a full 360° live Scout view around your boat.*

*360° Scout view requires dual systems and HDS® Pro

Compatible With:

  • HDS® Pro

  • HDS® Live

  • HDS® Carbon

  • Elite FS®


Mounting Options:

  • Shaft mount

  • Motor mount (RECON™ trolling motors only, sold separately)


Technical Specifications:

Sonar Module

  • Power Supply: 12/24 VDC

  • Operating Voltage: 10.8–31.2 VDC

  • Max Current Draw: 1.5A @ 13.8V

  • IP Rating: IP67

  • Operating Temp: 5°F to 131°F (-15°C to 55°C)

Transducer

  • Dimensions: 7.08" × 4.47" × 2.68"

  • Cable Length: 25 ft

  • Operating Temp: 32°F to 95°F (0°C to 35°C)
