Product Code: 010-02367-00

Garmin Gpsmap1223 12"" Plotter

Our price:
$2,799.99

Garmin Gpsmap1223 12"" Plotter

$2,799.99

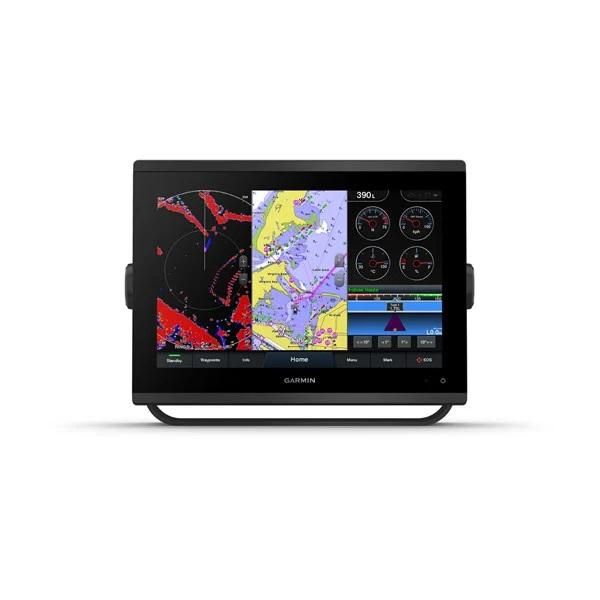

Garmin GPSMAP 1223 Chartplotter with Worldwide Basemap

Model: 010-02367-00
  • Easily integrate with more engines.
  • Connect to compatible third-party devices with OneHelm™ digital switching.
  • Easily build your marine system using the best of network connectivity.
  • Compatible with premium maps and charts for the best in Garmin navigation.
  • Take the guesswork out of sailing with clear laylines and more — right on the screen.
  • Manage your marine experience from nearly anywhere2.

With its sleek design, powerful processing and upgraded IPS display, this advanced 12" chartplotter integrates seamlessly into your Garmin marine system.

With its powerful technology and new slimline design featuring edge-to-edge glass and a smaller unit footprint, it’s easy to retrofit this 12" plotter in a wider range of dash configurations.

New 12" IPS displays offer improved sunlight readability and wide-angle visibility over previous-generation GPSMAP 12" Plus devices.

View laylines, race start line guidance, enhanced wind rose, heading and course-over-ground lines, true wind data fields and tide/current/time slider, wind angle, set and drift, wind speed and more3.

These optional charts offer the best of Garmin and Navionics® data, Auto Guidance4 technology and other premium navigation features.

If you have multiple compatible Garmin devices on your boat, you can share information — such as maps, user data, radar and IP camera video — among them.

Connect to compatible autopilots, digital switching, weather, Fusion-Link™ audio system, media, VHF, AIS and more from one screen.

Built-in Wi-Fi® connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, smart notifications, software updates, Garmin Helm™ digital switching, Garmin Quickdraw™ Community data and more5.

Connect with some of your favorite devices, such as quatix® marine watches, gWind™ Wireless 2 transducers, GNX™ Wind marine instruments and wireless remote controls.

Now you can connect your chartplotter to different kinds of engines, including select Yamaha engines.

This exclusive feature brings together all the operations and capabilities of select third-party devices, such as EmpirBus™ digital switching, on one screen.

Pair with Panoptix PS51 (transducer sold separately) with FrontVü scanning sonar6 to help you see and avoid submerged obstacles in real time as you approach within a 300’ range.

Specifications
General
PHYSICAL DIMENSIONS12.1" x 8.9" x 3.2" (30.8 x 22.8 x 8.2 cm)
DISPLAY SIZE10.3"" x 6.4""; 12.1"" diagonal
DISPLAY RESOLUTION1280 x 800 pixels
DISPLAY TYPEWXGA display
WEIGHT6.6 lbs. (3.0 kg)
WATER RATINGIPX7
POLARIZED SUPPORTYes
POWER CONSUMPTIONMax power usage at 10 Vdc: 26.5 W
Typical current draw at 12 Vdc: 1.7 A
Max current draw at 12 Vdc: 2.2 A
ANTENNAInternal or external over NMEA 2000
MOUNTING OPTIONSBail, flush or flat
RECEIVER10 Hz high-sensitivity
GARMIN MARINE NETWORK™ PORTS2
Maps & Memory
PRELOADED MAPSworldwide basemap
ACCEPTS DATA CARDS2 microSD™ cards (back of unit)
WAYPOINTS5,000
TRACK LOG50,000 points; 50 saved tracks
ROUTES100
Outdoor Recreation
TIDE TABLESYes
Chartplotter Features
GARMIN RADAR COMPATIBLEYes
GARMIN SONAR COMPATIBLEYes (with external black box, sold separately)
GARMIN SMARTMODE COMPATIBLE (CUSTOMIZABLE MONITOR PRESETS)Yes
SUPPORTS AIS (TRACKS TARGET SHIPS POSITION)Yes
SUPPORTS DSC (DISPLAYS POSITION DATA FROM DSC-CAPABLE VHF RADIO)Yes
SUPPORTS FUSION-LINK™ COMPATIBLE RADIOSYes
GSD™ BLACK BOX SONAR SUPPORTYes
GCV™ BLACK BOX SONAR SUPPORTYes
ACTIVECAPTAIN COMPATIBLEYes
GRID™ (GARMIN REMOTE INPUT DEVICE) COMPATIBLEYes
WIRELESS REMOTE COMPATIBLEYes
SAILING FEATURESYes
Sonar Features & Specifications
DUAL-FREQUENCY (50/200 KHZ) SONAR CAPABLEYes (with external black box, sold separately)
DUAL-BEAM (77/200 KHZ) SONAR CAPABLEYes (with external black box, sold separately)
CHIRP SONAR TECHNOLOGYYes (with external black box, sold separately)
CLEARVüYes (with external black box, sold separately)
SIDEVüYes (with external black box, sold separately)
Connections
NMEA 2000® COMPATIBLEYes
NMEA 0183 INPUT PORTS1
NMEA 0183 OUTPUT PORTS1
VIDEO INPUT PORTS1 BNC
VIDEO OUTPUT PORTS1 HDMI
WIRELESS CONNECTIVITYYes
J1939 COMPATIBLEYes

What's in the Box:
  • GPSMAP 1223 chartplotter
  • microSD™ card preinstalled
  • Power cable
  • NMEA 2000® T-connector
  • NMEA 2000 drop cable (2 meters)
  • Bail mount kit with knobs
  • Flush mount kit with gasket
  • Protective cover
  • Trim piece snap covers
  • Documentation
