Garmin Gpsmap923 9"" Plotter

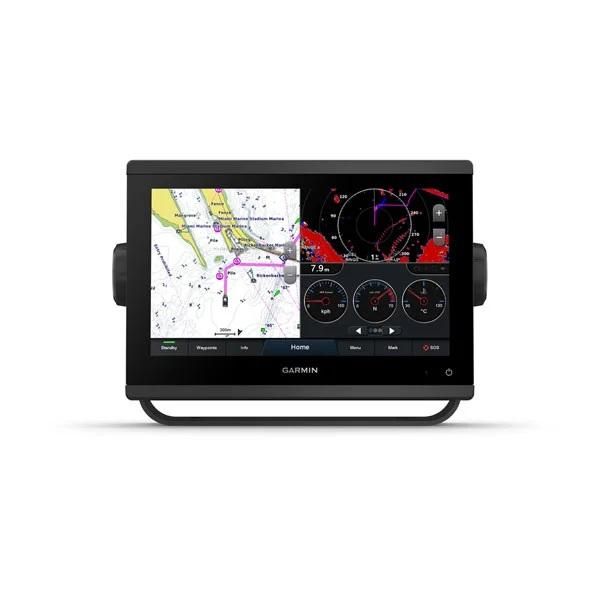

Garmin GPSMAP 923 Chartplotter with Worldwide Basemap

Model: 010-02366-00

• Easily integrate with more engines.
• Connect to compatible third-party devices with OneHelm™ digital switching.
• Easily build your marine system using the best of network connectivity.
• Compatible with premium maps and charts for the best in Garmin navigation.
• Take the guesswork out of sailing with clear laylines and more — right on the screen.
• Manage your marine experience from nearly anywhere2.

With 50% more display pixels and nearly double the processing power of previous-generation 9" GPSMAP devices, this crisp touchscreen chartplotter with high-resolution IPS display integrates seamlessly into your Garmin marine system.

With its added processing power and new slimline design featuring edge-to-edge glass and a smaller unit footprint, it’s easy to retrofit this 9" plotter in a wider range of dash configurations.

New higher-resolution 9" displays offer improved sunlight readability and visibility from any angle, with 50% more pixels than previous-generation 9" GPSMAP devices.

View laylines, race start line guidance, enhanced wind rose, heading and course-over-ground lines, true wind data fields and tide/current/time slider, wind angle, set and drift, wind speed and more3.

These optional charts offer the best of Garmin and Navionics® data, Auto Guidance4 technology and other premium navigation features.

If you have multiple compatible Garmin devices on your boat, you can share information — such as maps, user data, radar and IP camera video — among them.

Connect to compatible autopilots, digital switching, weather, Fusion-Link™ audio system, media, VHF, AIS and more from one screen.

Built-in Wi-Fi® connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, smart notifications, software updates, Garmin Helm™ digital switching, Garmin Quickdraw™ Community data and more5.

Connect with some of your favorite devices, such as quatix® marine watches, gWind™ Wireless 2 transducers, GNX™ Wind marine instruments and wireless remote controls.

Now you can connect your chartplotter to different kinds of engines, including select Yamaha engines.

This exclusive feature brings together all the operations and capabilities of select third-party devices, such as EmpirBus™ digital switching, on one screen.

Pair with Panoptix PS51 (transducer sold separately) with FrontVü scanning sonar6 to help you see and avoid submerged obstacles in real time as you approach within a 300’ range.

Specifications

General
PHYSICAL DIMENSIONS	9.2"" x 6.4"" x 3"" (23.3 x 16.2 x 7.6 cm)
DISPLAY SIZE	7.8"" x 4.4""; 9.0"" diagonal
DISPLAY RESOLUTION	1280 x 720 pixels
DISPLAY TYPE	WXGA display
WEIGHT	3.6 lbs (1.6 kg)
WATER RATING	IPX7
POLARIZED SUPPORT	Yes
POWER CONSUMPTION	Max power usage at 10 Vdc: 22 W Typical current draw at 12 Vdc: 1.3 A Max current draw at 12 Vdc: 1.8 A
ANTENNA	Internal or external over NMEA 2000
MOUNTING OPTIONS	Bail, flush or flat
RECEIVER	10 Hz high-sensitivity
GARMIN MARINE NETWORK™ PORTS	1
Maps & Memory
PRELOADED MAPS	worldwide basemap
ACCEPTS DATA CARDS	2 microSD™ cards (back of unit)
WAYPOINTS	5,000
TRACK LOG	50,000 points; 50 saved tracks
ROUTES	100
Outdoor Recreation
TIDE TABLES	Yes
Chartplotter Features
GARMIN RADAR COMPATIBLE	Yes
GARMIN SONAR COMPATIBLE	Yes (with external black box, sold separately)
GARMIN SMARTMODE COMPATIBLE (CUSTOMIZABLE MONITOR PRESETS)	Yes
SUPPORTS AIS (TRACKS TARGET SHIPS POSITION)	Yes
SUPPORTS DSC (DISPLAYS POSITION DATA FROM DSC-CAPABLE VHF RADIO)	Yes
SUPPORTS FUSION-LINK™ COMPATIBLE RADIOS	Yes
GSD™ BLACK BOX SONAR SUPPORT	Yes
GCV™ BLACK BOX SONAR SUPPORT	Yes
ACTIVECAPTAIN COMPATIBLE	Yes
GRID™ (GARMIN REMOTE INPUT DEVICE) COMPATIBLE	Yes
WIRELESS REMOTE COMPATIBLE	Yes
SAILING FEATURES	Yes
Sonar Features & Specifications
CHIRP SONAR TECHNOLOGY	Yes (with external black box, sold separately)
CLEARVü	Yes (with external black box, sold separately)
SIDEVü	Yes (with external black box, sold separately)
Connections
NMEA 2000® COMPATIBLE	Yes
NMEA 0183 INPUT PORTS	1 (Differential)
NMEA 0183 OUTPUT PORTS	1 (Differential)
VIDEO INPUT PORTS	1 BNC
WIRELESS CONNECTIVITY	Yes
J1939 COMPATIBLE	Yes

What's in the Box:

• GPSMAP 923 chartplotter
• microSD™ card preinstalled
• Power cable
• NMEA 2000® T-connector
• NMEA 2000 drop cable (2 meters)
• Bail mount kit with knobs
• Flush mount kit with gasket
• Protective cover
• Trim piece snap covers
• Documentation
